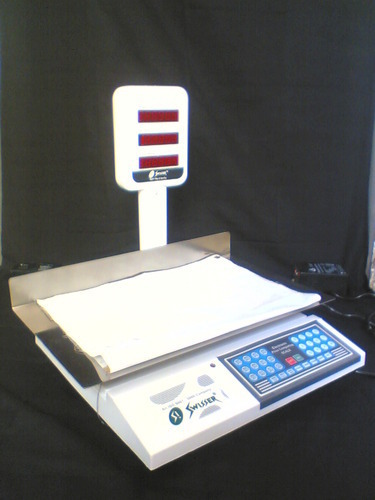

Digital Piece Counting Scale

Name: Digital Piece Counting Scale
Brand: SWISSER INSTRUMENTS PVT. LTD.
Price: 14500
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

Digital Piece Counting Scale Specification

Automatic Grade
Automatic

Features
Tare Function, Piece Counting, Overload Protection, Low Battery Indicator

Function
Automatic Piece Counting, Weight Display

Display Type
Digital / LED

Battery Life
Up to 96 Hours on Rechargeable Battery

Usage
Industrial, Commercial, Retail

Interface
User-Friendly Keypad

Application
Measuring and Counting Pieces Efficiently

IP Rating
IP20

Power Source
Electric / Battery

Connectivity Type
No External Connectivity

Size
Platform: Approx. 230 x 300 mm

Product Type
Digital Piece Counting Scale

Weighing Scale Type
Electronic Counting Scale

Material
Stainless Steel Platform with ABS Body

Power Supply
AC Adapter / Rechargeable Battery

Monitor Display
High Bright LED Display

Load
Selectable Units (kg/g/pcs)

Accuracy
Highly Precise, up to 1g

Capacity Range
Up to 30 kg

Color
Grey / Black

About Digital Piece Counting Scale

Piece Counting Scale

Model No.	Capacity	Accuracy	Pan Size
SWIPC 005	5 Kg	0.5 gm	400 mm X 240 mm
SWIPC 101	10 Kg	1 gm	400 mm X 240 mm
SWIPC 105	10 Kg	0.5 gm	400 mm X 240 mm
SWIPC 202	20 Kg	2 gm	400 mm X 240 mm
SWIPC 201	20 Kg	1 gm	400 mm X 240 mm
SWIPC 305	30 Kg	5 gm	400 mm X 240 mm
SWIPC 302	30 Kg	2 gm	400 mm X 240 mm
SWIPC 301	30 Kg	1 gm	400 mm X 240 mm
SWIPC 505	50 Kg	5 gm	400 mm X 240 mm

Specifications :
Operating Temperature.: 10C to 60C
Storage Temperature. : -10C to 60C
Humidity: 10% to 95 % relative
Power Supply :230 Volt / 50 Hz 5%
Battery Backup: In Built Battery Backup (6 V Or 12 V Maintenance Free Sealed Battery)
Power Consumption : Less than 10 Watts.
Display: 7 Segment Bright LED Display /LCD Display
All Models & Designs Are Subjected to Change
All Models Are Approved by Department of Weights & Measure, Govt. Of India
Features :- Advanced Micro controller Based System
Overload Protection for Safety
Most Precise and Best Quality Components
Stainless Steel Pan
Bright ( Red / Green) LED Display
Multi Function Series With All Most Useful Functions Like Gram, Tola, Carat, Piece Counting Liter, Memory Accumulation, Auto Zero Tracking, Auto Off, Sensitivity Setting, Alert / Check Weight, G - Define, Intensity Adjustment, Running Character Display
Auto Calibration
Liter / Kg Conversion.
Stand by mode For Long Time Backup (Battery Saving).
AC / DC Indicator
RS 232 Port For Computer / Printer Interfacing.
Hook Facility Available For Suspended Weighing As Per Requirement

APPLICATIONS : In Industries For Packing
Grocery Market
Super Markets, Oil, Grain, Pulses
Tea, Coffee, Sweets & Dry Fruits Packing
Food, Bakery, Hotel, Restaurants

Efficient Piece Counting with Memory Storage

Streamline your inventory and packaging processes by storing the piece weights of multiple items directly on the scale. With selectable sampling sizes and a rapid response time of 23 seconds, repetitive counting becomes accurate and faster, reducing manual effort and operational errors.

Precision and Durability Combined

The scales highly accurate measurement, up to 1g, is ensured with external calibration support. Built with a stainless steel platform and ABS body, it offers both resilience and hygiene, suitable for rigorous industrial and retail use. Overload protection and a low battery indicator provide reliable, uninterrupted operation.

Flexible Power Solutions and User-Friendly Interface

Operate the scale anywhereconnect to AC power (110220V) or switch to the rechargeable battery for up to 96 hours of usage. The intuitive keypad with functions such as tare, zero, memory, and sample set allows for straightforward, hassle-free use, even for first-time operators.

FAQs of Digital Piece Counting Scale:

Q: How does the scales memory function enhance counting accuracy and efficiency?

A: The counting memory feature allows users to store the piece weights of multiple products, minimizing the need to recalibrate with each use. This is particularly valuable in repetitive counting tasks, saving time and improving consistency across inventory or packaging operations.

Q: What is the recommended process for calibrating the scale?

A: Calibration is supported externally, so it is recommended to use standard calibrated weights for recalibration. Follow the manufacturers specifications and guidelines for proper loading and setting of reference weights to ensure continued high precision.

Q: Where can this digital counting scale be used effectively?

A: This scale is designed for industrial, commercial, and retail settingsideal for counting and weighing small components, fasteners, or retail items efficiently in warehouses, factories, and shops.

Q: What benefits does the stainless steel platform provide over other materials?

A: The stainless steel platform delivers enhanced durability, is resistant to corrosion and easy to clean, making it suitable for heavy-duty use and maintaining hygiene in environments such as food, pharmaceutical, and manufacturing sectors.

Q: When is it necessary to use different sampling sizes on the scale?

A: Selectable sampling sizes (10, 20, 50, 100 pieces) should be chosen based on the quantity and uniformity of the items being counted. Using higher sample sizes generally improves counting accuracy, especially with lighter or more variable parts.

Q: How long can the rechargeable battery operate, and what happens if the battery is low?

A: On a full charge, the rechargeable battery provides up to 96 hours of operation. The scale includes a low battery indicator to alert users, ensuring timely recharging and preventing work interruptions.

Q: What advantages does the user-friendly keypad offer for daily operations?

A: The keypad, featuring dedicated buttons for tare, zero, memory, and sample set, simplifies everyday tasks. It enables quick adjustments, efficient operation, and reduces training time for new users.
